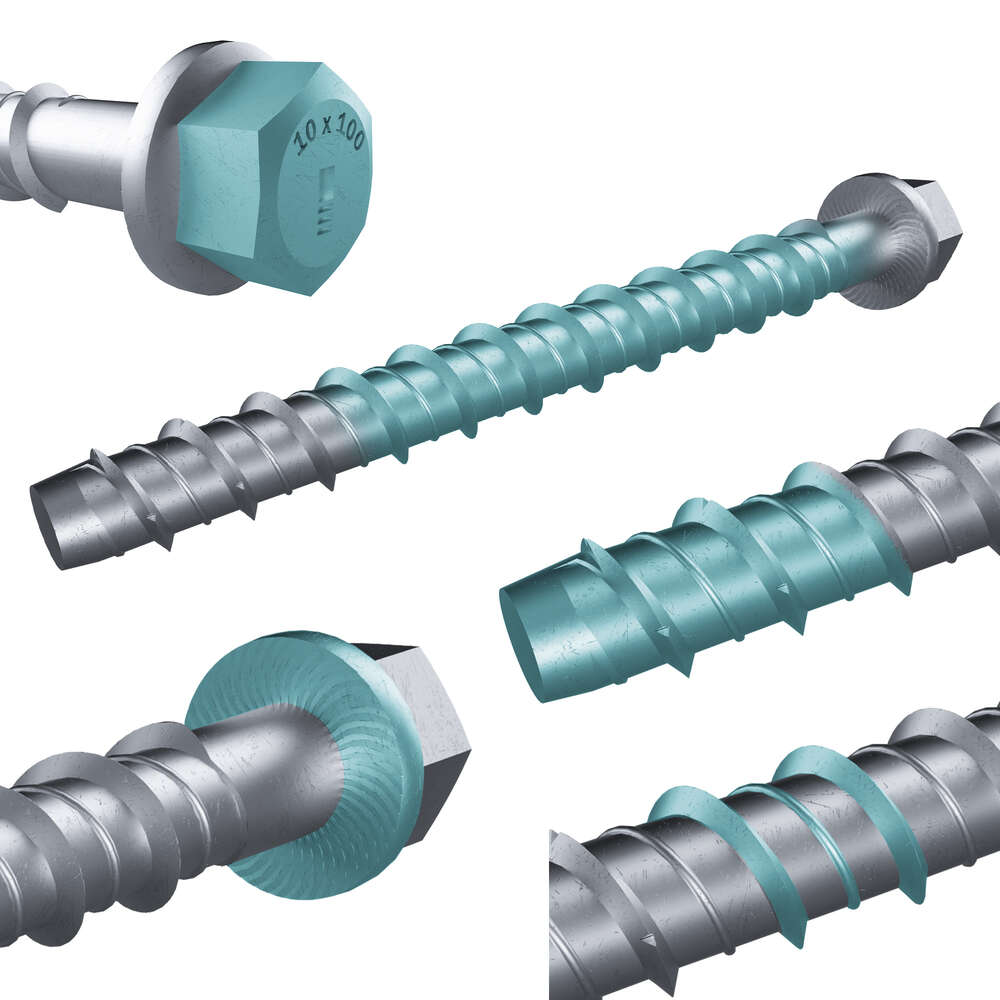

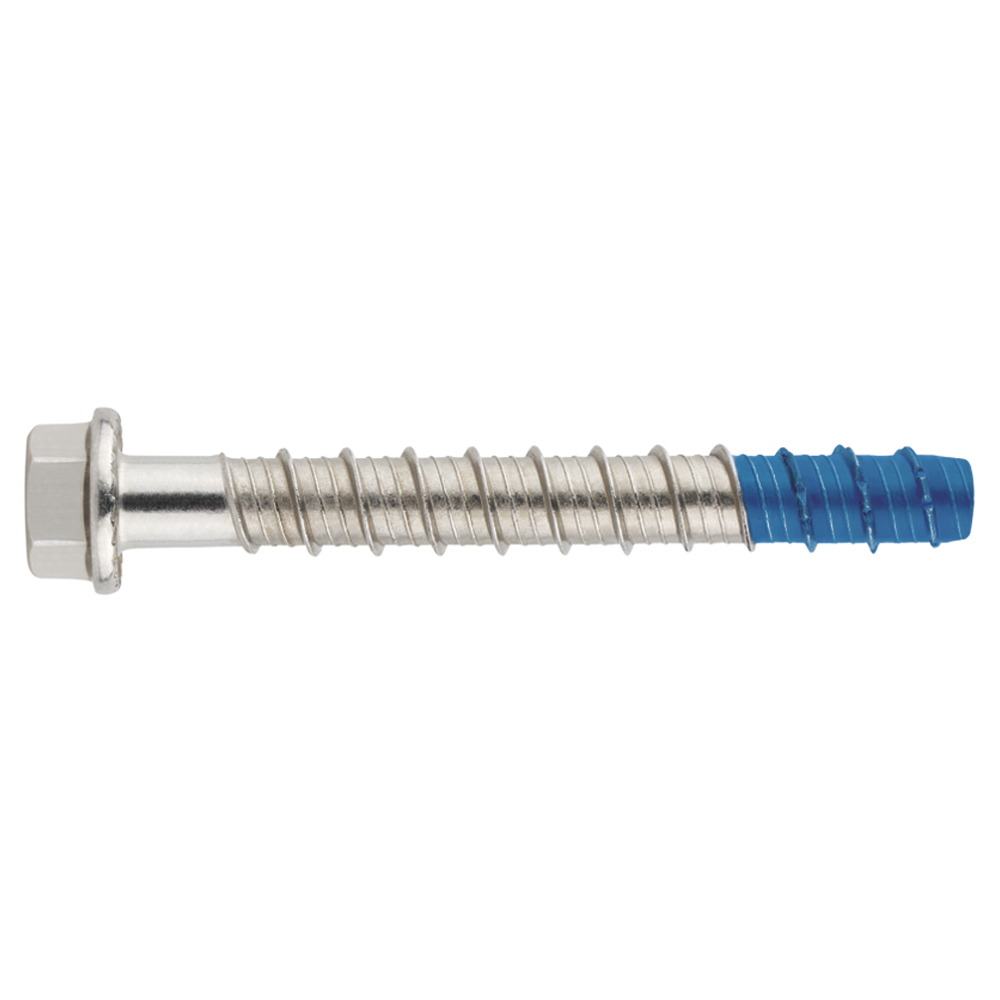

Bimetal concrete screw (stainless steel body) TYE

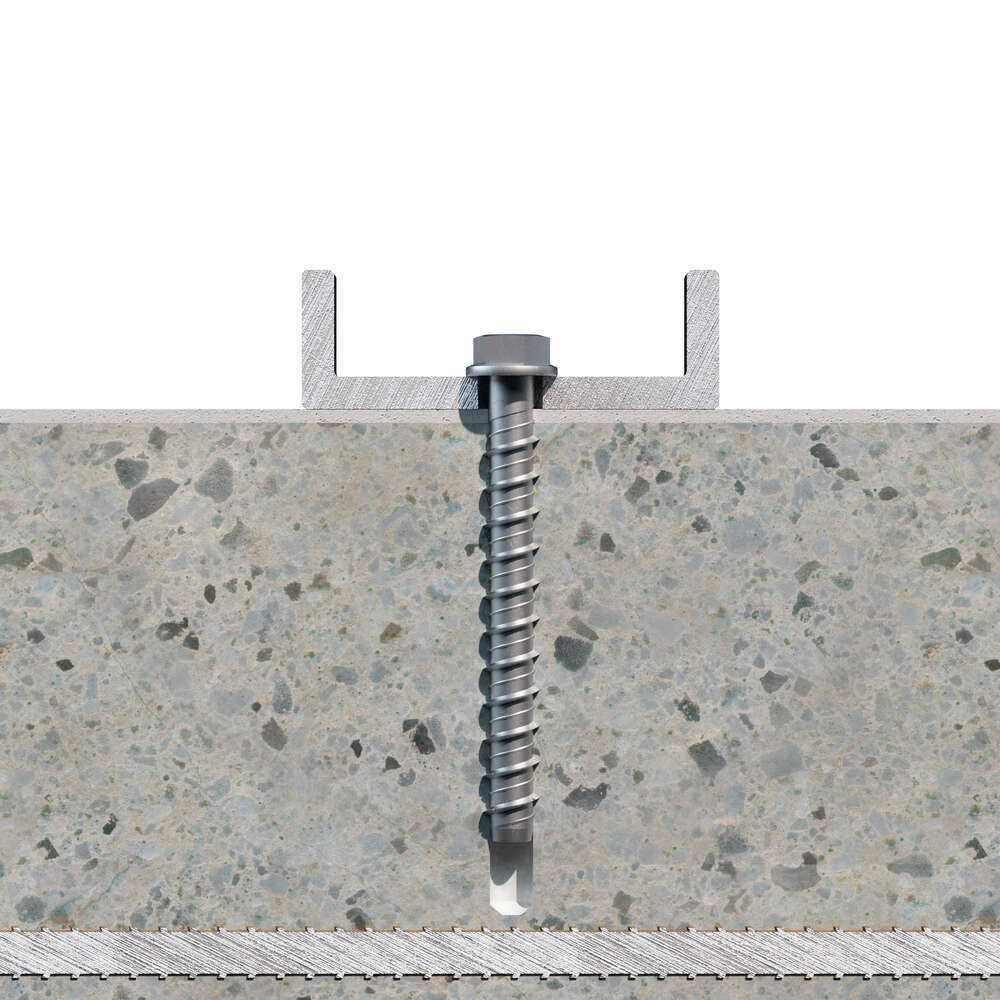

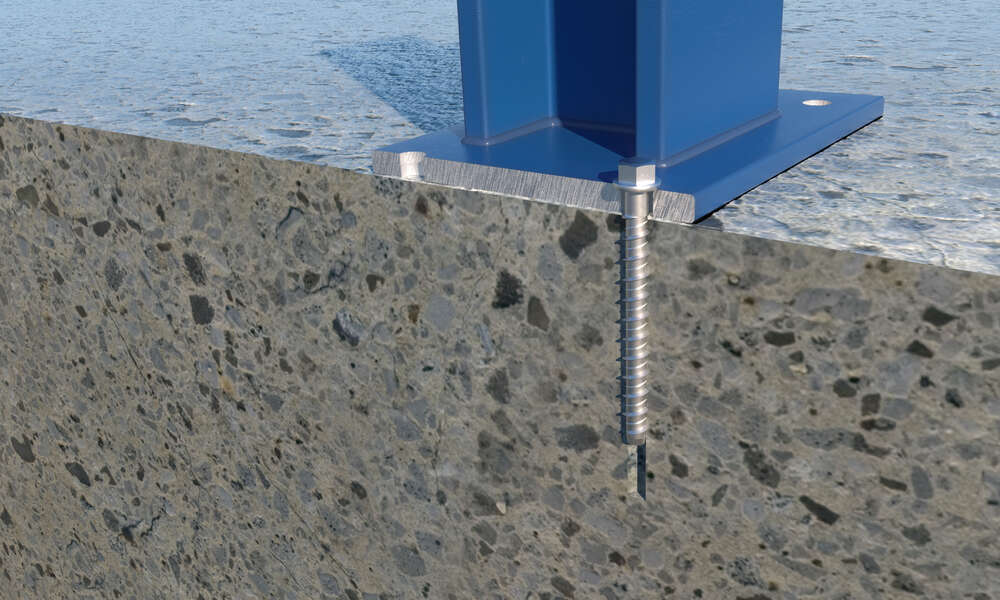

Bimetallic concrete screw with an AISI 316 stainless steel body. Ideal for outdoor or coastal applications, thanks to its high resistance to corrosion. It is installed in a pilot hole, cutting its own thread without the need for special drill bits. Suitable for both cracked and non-cracked concrete, as well as masonry, in accordance with ICC-ES AC193, ACI 355.2 and ESR-5216 approvals. It is reusable, removable and perfect for structural fixings in confined spaces, formwork, handrails, boilers, beams, heavy furniture or substructures. Its design allows for secure installation under static, seismic or wind loads, leaving the surface clean after removal. Threaded in inches.

ASSESSMENTS AND CERTIFICATES

CodeSizeTHICKNESS MAX.FIXTURE [mm]Nº RECESSMin. Order Qty.Pcs. BoxEANTechnical info.
TYE142001/4" x 2"1/4"01008423533894212

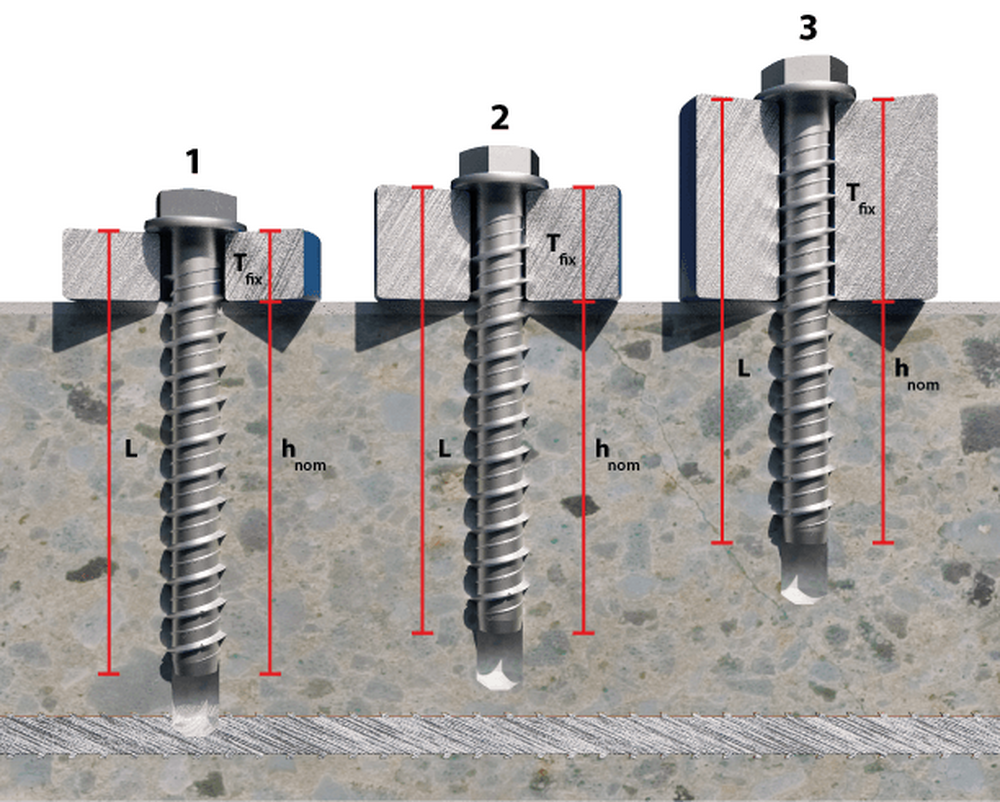

  • tfix - Max. fixture thickness1/4"
  • SW - Installation key7/16"
  • df - Ø Element to fix3/8"
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth1-3/4"
  • h1 - Drill hole depth min.2-1/4"
  • d0 - Ø Drill1/4"
  • hmin - Min. substrate thickness3-1/4"
  • L - Lenght2"
TYE143001/4" x 3"1"01008423533894229
  • tfix - Max. fixture thickness1"
  • SW - Installation key7/16"
  • df - Ø Element to fix3/8"
  • Tins - Torque (Nm)10
  • hef - Effective depth1.16
  • hnom - Min. anchor depth2"
  • h1 - Drill hole depth min.2-3/8"
  • d0 - Ø Drill1/4"
  • hmin - Min. substrate thickness3-1/4"
  • L - Lenght3"
TYE382123/8 x 2-1/21/4"0508423533894250
  • tfix - Max. fixture thickness1/4"
  • SW - Installation key9/16"
  • df - Ø Element to fix1/2"
  • Tins - Torque (Nm)35
  • hnom - Min. anchor depth2-1/4"
  • h1 - Drill hole depth min.2-1/2"
  • d0 - Ø Drill3/8"
  • hmin - Min. substrate thickness4"
  • L - Lenght2-1/2"
TYE383003/8" x 3"1/4"0508423533894267
  • tfix - Max. fixture thickness1/4"
  • SW - Installation key9/16"
  • df - Ø Element to fix1/2"
  • Tins - Torque (Nm)35
  • hef - Effective depth1.49
  • hnom - Min. anchor depth2-3/4"
  • h1 - Drill hole depth min.3"
  • d0 - Ø Drill3/8"
  • hmin - Min. substrate thickness4"
  • L - Lenght3"
TYE384003/8" x 4"1-1/4"0508423533894274
  • tfix - Max. fixture thickness1-1/4"
  • SW - Installation key9/16"
  • df - Ø Element to fix1/2"
  • Tins - Torque (Nm)35
  • hef - Effective depth1.49
  • hnom - Min. anchor depth2-3/4"
  • h1 - Drill hole depth min.3"
  • d0 - Ø Drill3/8"
  • hmin - Min. substrate thickness4"
  • L - Lenght4"
TYE124001/2" x 4"1"0508423533894311
  • tfix - Max. fixture thickness1"
  • SW - Installation key3/4"
  • df - Ø Element to fix5/8"
  • Tins - Torque (Nm)35
  • hef - Effective depth1.6
  • hnom - Min. anchor depth3"
  • h1 - Drill hole depth min.3-3/8"
  • d0 - Ø Drill1/2"
  • hmin - Min. substrate thickness4-3/4"
  • L - Lenght4"
TYE125001/2" x 5"2"0508423533894328
  • tfix - Max. fixture thickness2"
  • SW - Installation key3/4"
  • df - Ø Element to fix5/8"
  • Tins - Torque (Nm)35
  • hef - Effective depth1.6
  • hnom - Min. anchor depth3"
  • h1 - Drill hole depth min.3-3/8"
  • d0 - Ø Drill1/2"
  • hmin - Min. substrate thickness4-3/4"
  • L - Lenght5"
PR2519BI11398 CP TYE TYE SZ4
PR2519BI11405 CP TYE TYE SZ4

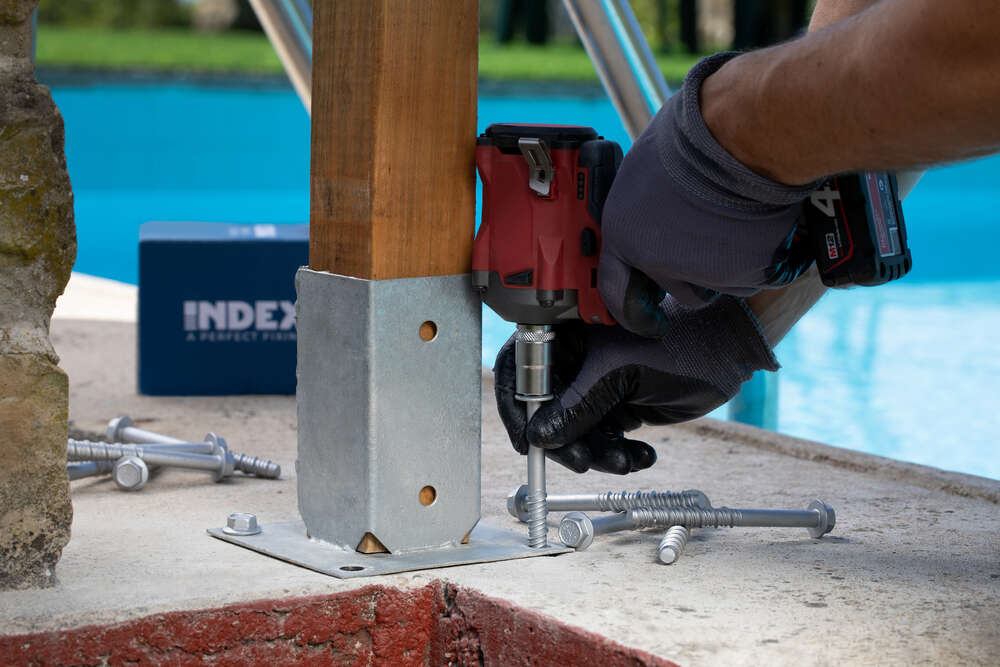

PR2519BI11406 CP TYE TYE SZ4
PR2519BI11407 CP TYE TYE SZ4
PR2519BI11408 CP TYE TYE SZ4

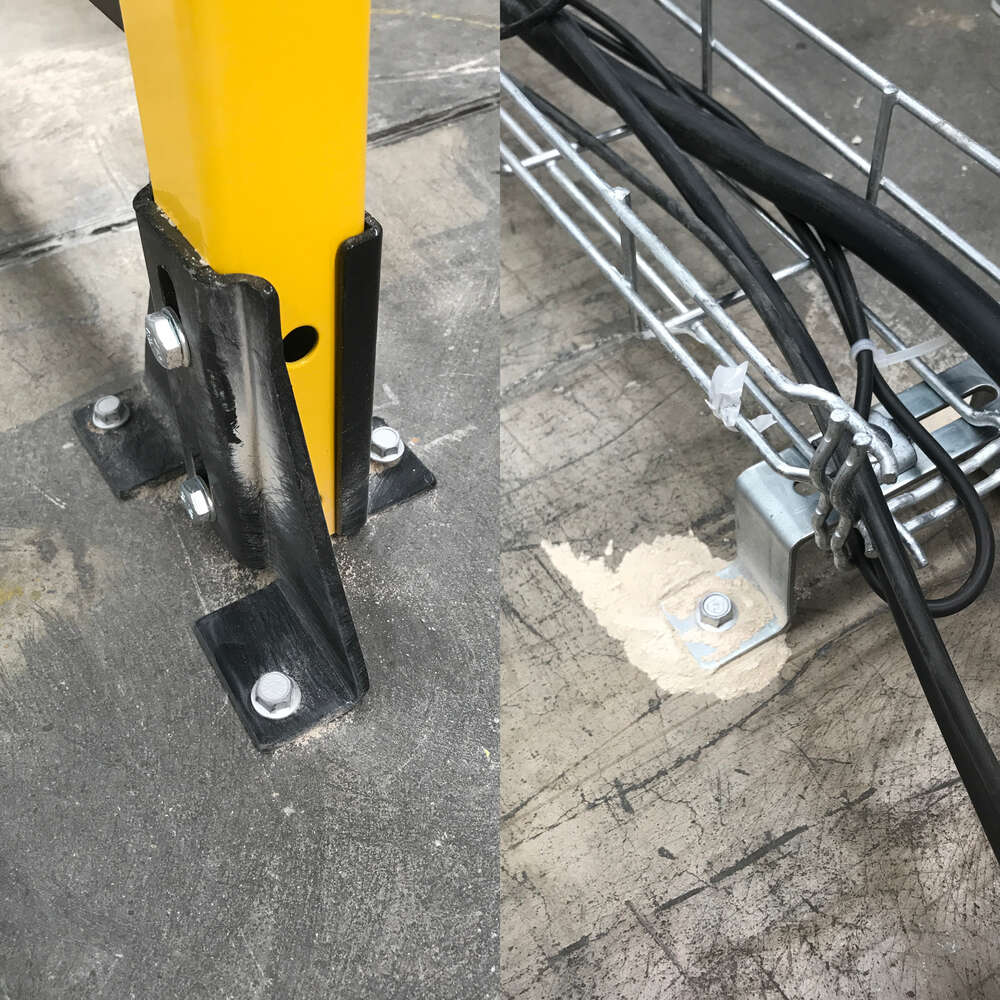

PR2519BI11399 CP TYE TYE SZ4

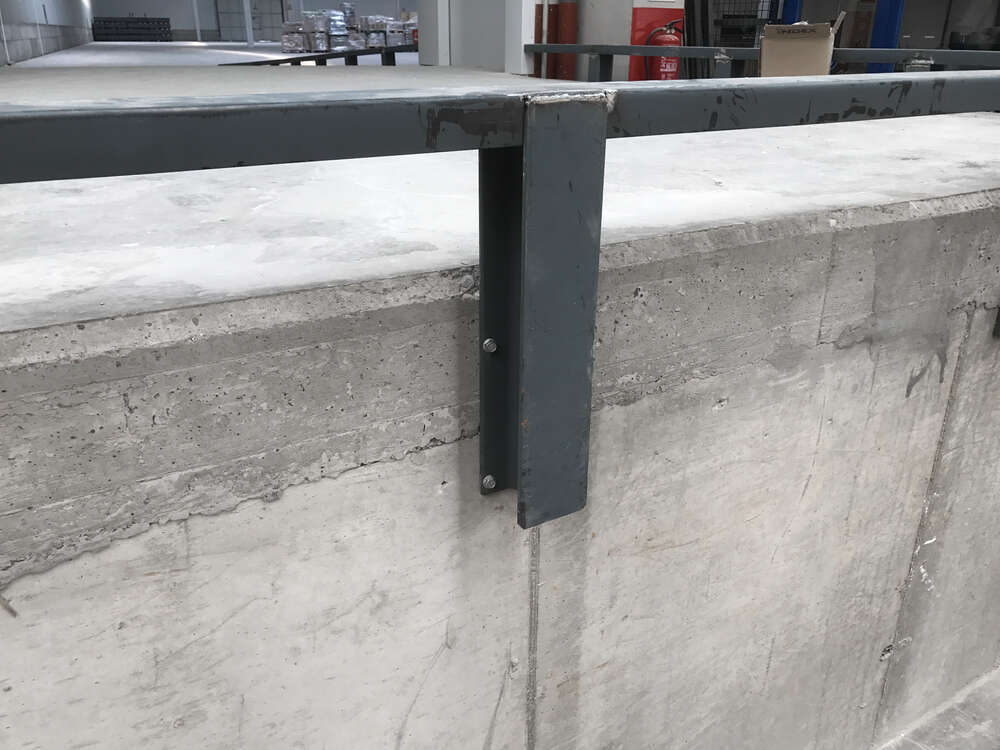

PR2519BI11401 CP TYE TYE SZ4

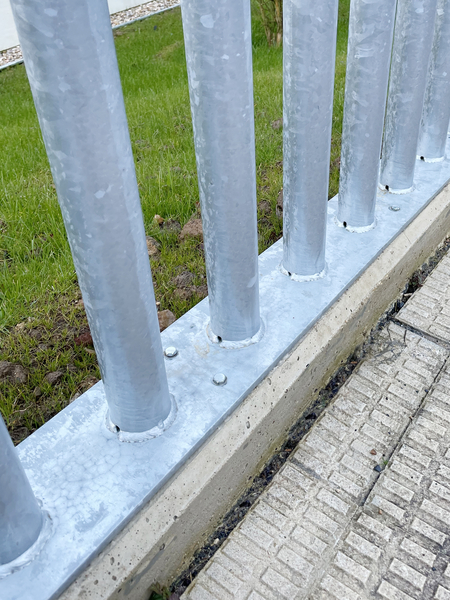

PR2519BI11402 CP TYE TYE SZ4

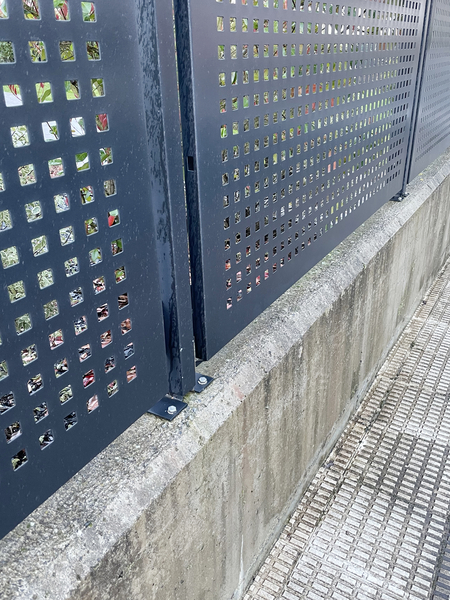

PR2519BI11403 CP TYE TYE SZ4
PR2519BI10424 CP TYE TYE SZ4
icon security
Assessments
NOA_TDE_en_rev3.pdf
ESR_TDE-en_rev14.pdf
ESR_TDE_masonry-en_rev2.pdf
icon camera
Multimedia
Video
Can you install a mechanical anchor at different depths?
Can you reuse concrete screws?
